lcd thermostat for commercial freezer TC221B

FOB Price:

US 1-100 / Piece

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

200000 Piece/Pieces per Month

Port:

zhongshan

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

shangfang

Products Model:

TC221B

Products Details
Company Profile

Quick Details

Brand Name: shangfang

Model Number: TC221B

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 50pcs/carton,carton size:49.5x43.5x18.5cm
Delivery Detail: 15 business days

Specifications

We have 15 years experience producing temperature controller.Our products are well-known for their stable performance and durability.

Besides conventional products,customized are offered as well. So,don' be hesitate to contact us,we will serve you with 100% enthusiasm

Satisfactory after-service is offered.Our technical team support you for any technical problem about products.And there is one year warranty for each one.

We ready to serve you. Let's build a win-win partnership!

Main products

Picture of factory

lcd thermostat for commercial freezer TC221B

Features

1 Double windows for temperature display

2 Double temperature control

3 Power supply switch

4 Memory setup/Self testing

5 Display connects host controller at long distance

Technical Data

1 Power supply:230VAC 50/60Hz

2 Range of temperature displayed:-45°C~99°C

3 Range of set temperature:-45°C~45°C

Accuracy:±1°C

4 Compressor:NO.20A/250VAC

5 Temperature sensor:2 NTC

6 Temperature of the operating environment:-10°C~60°C

Relative humidity:20%~90%(Non-condensing)

Size

Display

Dimension:118(L)x44(W)x35(D)mm

Mounting hole dimension:87(L)x34.5(W)mm

Host controller

Dimension:150(L)x130(W)x55(D)mm

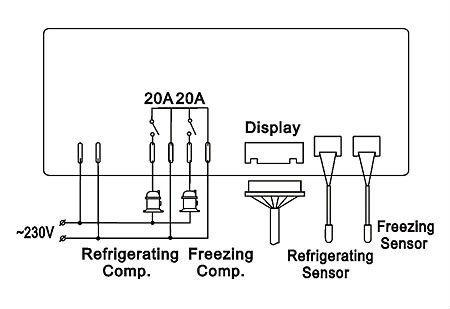

Circuit diagram

Parameter

Parameter	Function	Set range	Default
E1	The lowest set temp.For refrigerating	-45~45°C	-5°C
E2	The highest set temp.For refrigerating	-45~45°C	35°C
E3	The lowest set temp.for freezing	-45~45°C	-20°C
E4	The highest set temp.for freezing	-45~45°C	30°C
E5	Temp.hysteresis	-10~10°C	4°C
E6	Comp.start delay time	0~10Min	2Min
E7	Offset on Refrigerating sensor	-20~20°C	0
E8	Offset on Freezing sensor	-20~20°C	0

Certificated

Established in 1998, started from customizing digital temperature controllers for freezer manufacturers, according to the idea of Credit standing roots quality, quality creates brand, and after years endeavor, Zhongshan Shangfang Instrument Meter Co., Ltd developed and produced a whole series of digital temperature&humidity controllers which widely used in refrigeration, air conditioning, heating, food and packaging machinery etc.

Shangfang controllers have the characters of compact design, easy operation, strongly anti-jamming and stable performance etc. The controllers are UL ,CE, CQC and RoHS approved.

Basic Information

Business Type: Manufacturer,Trading Company
Main Products: digital temperature controllers for freezer/heating, humidity controller, temperature and humidity indicator
Location: Guangdong, China (Mainland) Asia
Year Established:

Trade Capacity

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery
Accepted Payment Currency: USD,GBP,RMB,EUR,HKD,CNY
Accepted Payment Type: T/T,Western Union,Credit Card,Cash
Nearest Port: Shenzhen,Zhongshan
